CNC Gear Grinding Machine Sharpening Saw Blade Automatic

Name: CNC Gear Grinding Machine Sharpening Saw Blade Automatic
Brand: CEDAR
Price: 1 USD

Wholesale CNC Gear Grinding Machine Sharpening Saw Blade Automatic from china suppliers

Place of Origin : Jiangsu, China

Brand Name : CEDAR

Certification : CE

MOQ : 1 set

Price : $1,200-1,400 / set

cnc or not : CNC

type : Gear Grinding Machine

video outgoing-inspection : Provided

machinery test report : Provided

core components : PLC

voltage : 220V/380V/415V

dimension(l*w*h) : 550*700*1200MM

warranty : 1 Year

key selling points : Automatic

weight (kg) : 150

After-sales Service Provided : Engineers available to service machinery overseas, Video technical support

Name : gear grinding machine Saw Blade Tooth Making and Shaping Machine

Outer diameter of : 40-450mm

depth of notch : The deepest 8mm

Feed speed : 45~180Tooth/Min

Grinding wheel diameter : 75~150mm

Grinding wheel speed : 4200Rpm

The drive motor : 1/2HP

Grinding wheel motor : 3/4HP

The machine size : 550*700*1200mm

After Warranty Service : Video technical support

Local Service Location : None

Condition : New

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert

Showroom Location : None

Contact Now

CNC Gear Grinding Machine Sharpening Saw Blade Automatic

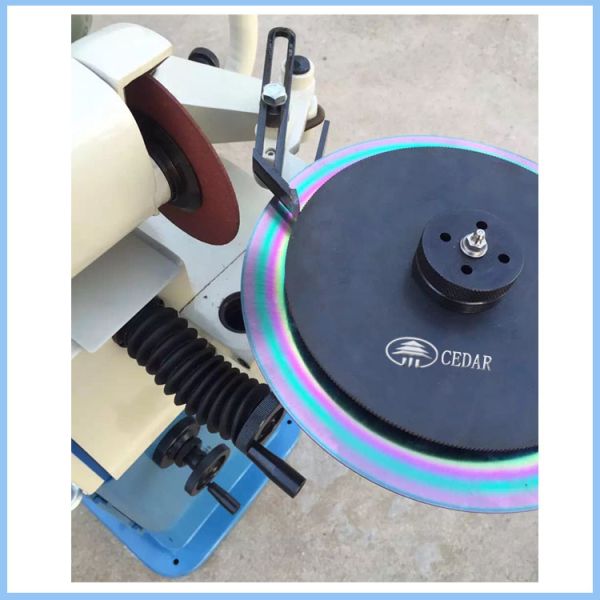

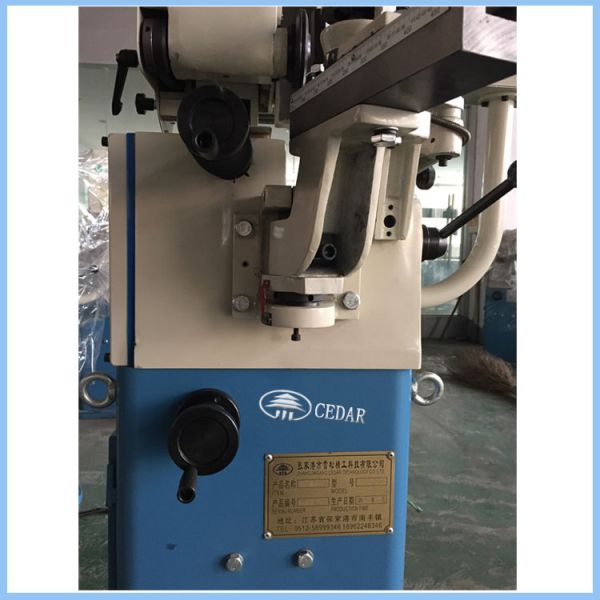

Saw blade grinding machine

In order to solve the user saw blade grinding difficult and inconvenient, improve the saw blade usage problems, combined with foreign advanced technology, independent research and development production of the pipe cutter saw blade grinding machine, circular saw blade can be greatly improved the use of cost and efficiency.

Product features:

1.Easy to operate and easy to learn, but in a short time, the novice can become a professional technician.

2.The cutting Angle, tooth shape, depth of teeth, and the ability to grind sharp saw blades can be made according to different chip requirements.

3.The material of grindsaw blade is: high speed steel HSS, Mn of manganese steel.

4.To sharpen a variety of teeth. (left and right, round, triangular, and low.)

5.The grinding time of the saw blade is rapidly adjusted according to different cutting requirements.

6.The head can be moved up or down, without changing the grinding wheel.

7.The mechanical feed is welded to the tip of the push claw with a carbonized tungsten plate, which reduces the wear and tear: the push arm is modified to ensure the accuracy is in place.

8.After strict production control, the machine can ensure the precision of the grinding.

Project	Unit	450
Outer diameter of circular saw blade	MM	Φ40-450
pitch	MM	The biggest 25
depth of notch	MM	The deepest 8
Cutting Angle	°	-5~30
Feed speed	Tooth/Min	45~180
The ply of circular saw blades	MM	The thickest 8
Grinding wheel diameter	MM	75~150
Grinding wheel speed	Rpm	4200
The drive motor	HP	1/2
Grinding wheel motor	HP	3/4
Machine Weight	KG	150
The machine size	MM	5507001200

CHOOSE

Q: How to quickly choose the best product for you?

A: You can view it on the product page, or contact customer service to give the following details: What machine do you need?Workpiece size, thickness, material, processing requirements, it is best to have the workpiece drawings, we will according to your requirements, more professional to provide suitable for your machine.

THE DELIVERY PERIODd OF DELIVERY

Q: What is the lead time?

A: We usually have the goods in stock. If we need to make customized fixtures and molds, we usually finish them within 7-15 working days. Please contact the customer service to confirm the exact time.

PAYMENT

Q: What are your terms of payment?

A: We support T/T, L/C, etc.TT, 30% in advance, 70% balance before shipment.

USE

Q: When I bought this machine, I didn't know how to use it.What should I do?

A: We will send the English manual, installation and operation video together with the equipment.If you still have questions, we can talk by phone, Whatsapp, WeChat and email.

THE QUALITY OF

Q: How to guarantee the quality?

A: We have factories.We are industry experts and have been operating for more than 10 years.We always adhere to the "quality, full-service" policy.

THE WARRANTY

Q: How long is the warranty?

A: Within one year from the date of delivery, if the parts fail or are damaged

Due to the quality problem, except the wearing parts, our company provides these parts free of charge.

THE COMPANY TO VISIT

Q: How do we get to your company?

A: Our company is located in Zhangjiagang city, Jiangsu Province, near Shanghai.You can fly directly to PVG airport or Shanghai Hongqiao Airport.Welcome to visit our company.
